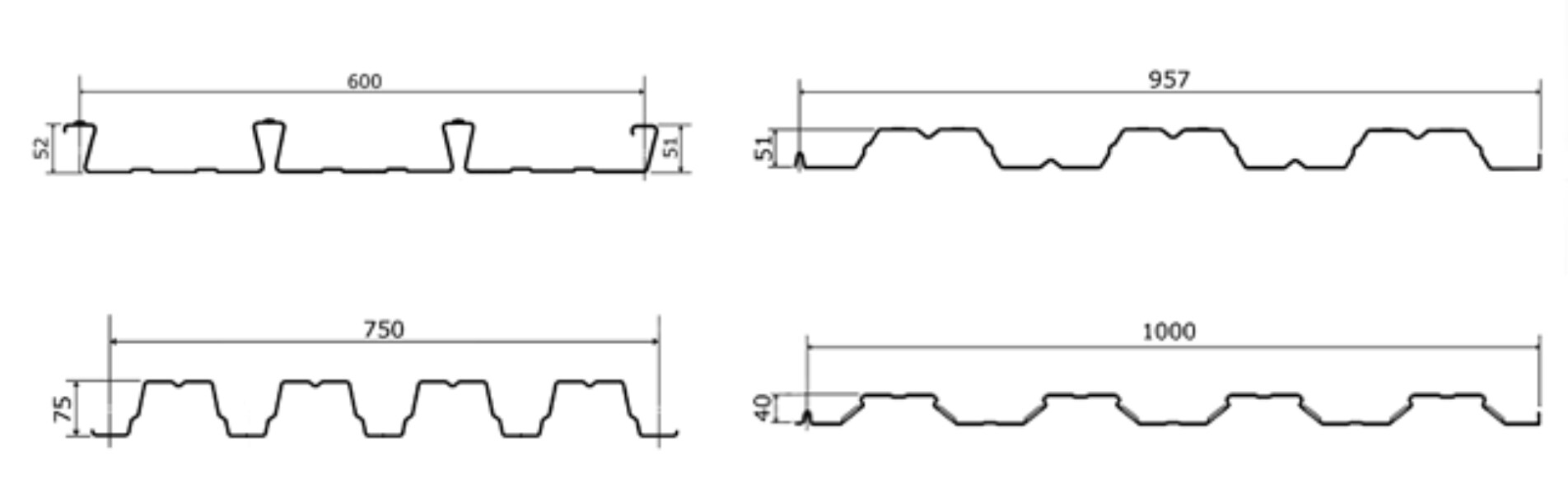

Heavy duty capacity for deck production with various profile and pattern to suit for defferent requirment. No hydaulic powerpack required more suitable for working in higher temperature environment. Cassette type design is available.
Specification
Advantages
Advantage (Certified with Muliti-Patents)

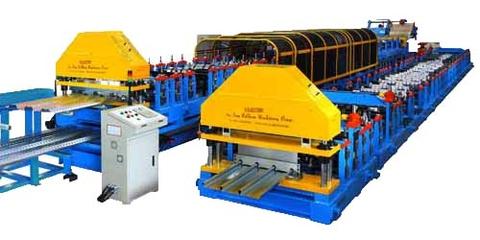

Fully Automatic Decking machine.
Machine base is available for Quick Change platform type, multi-profile purposes.
Production Speed: 10 ~ 20M/min. Product Length: 2.0 ~ 12M.
Raw Material: Galvanized sheet G300 ~ 550. Plate Thickness: 0.75/ 1.0/ 1.25mm.
Automatic motorized cutting machine.(no hydraulic / pneumatic required).
Automatic piling device. Quantity / Batch automatic production mode available.
Machine Progress:
Decoiler → (Option: Pre Cut) → Rollforming → Motorized Cut-off → Single sided Piling device
We are the major supplier and leading exporter of such equipment in Taiwan. We manufacture different kinds of metal sheet cold roll forming machine for producing the following products. Such as: Carbon steel pipe, Stainless steel pipe, Light gauge steel, Door frame, Roofing corrugated sheet, Roofing tile, Wall panel, Ceiling T-bar, Steel deck, Partition beam, and other various metal sheet building materials.
