Complete line consist of
Advantage (Certified with Muliti-Patents)

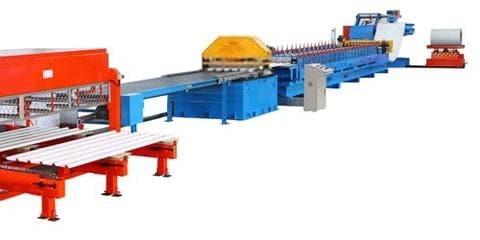

Fully Automatic High speed Roofing machine.
Machine base is available for Quick Change platform type, multi-profile purposes.
Production Speed: 25/ 50/ 75 M/min. Product Length: 2.0 ~ 12M.
Raw Material: Pre-Painted Steel sheet G300 ~ 550. Plate Thickness: 0.3 ~ 0.6mm.
Automatic motorized cutting machine.(no hydraulic / pneumatic required).
Automatic piling device. Quantity / Batch automatic production mode available. With unloading chain for reducing the suspension time of different orders.
Machine Progress:
Decoiler → (Option: Pre Cut) → Rollforming → Motorized Cut-off → Conveyor → Double Sided Stacking device → Unloading Device"
Specification
We are the major supplier and leading exporter of such equipment in Taiwan. We manufacture different kinds of metal sheet cold roll forming machine for producing the following products. Such as: Carbon steel pipe, Stainless steel pipe, Light gauge steel, Door frame, Roofing corrugated sheet, Roofing tile, Wall panel, Ceiling T-bar, Steel deck, Partition beam, and other various metal sheet building materials.
